Next Evolution of Line Sets
Python™ is a PERT-AL-PERT line set and compression fitting system designed for both split system and mini-split system applications including heat pump systems.
WHAT MAKES PYTHON UNIQUE?
Pricing is competitive and more stable than copper line set pipe pricing. Python is less likely to be stolen on job sites. Additionally, compression crimp fittings can be applied in the field without the use of special press tools. Learn More
As an alternative to copper pipe, Python is light-weight, chemical resistant, UV resistant, and tear and kink resistant.
PRODUCTS

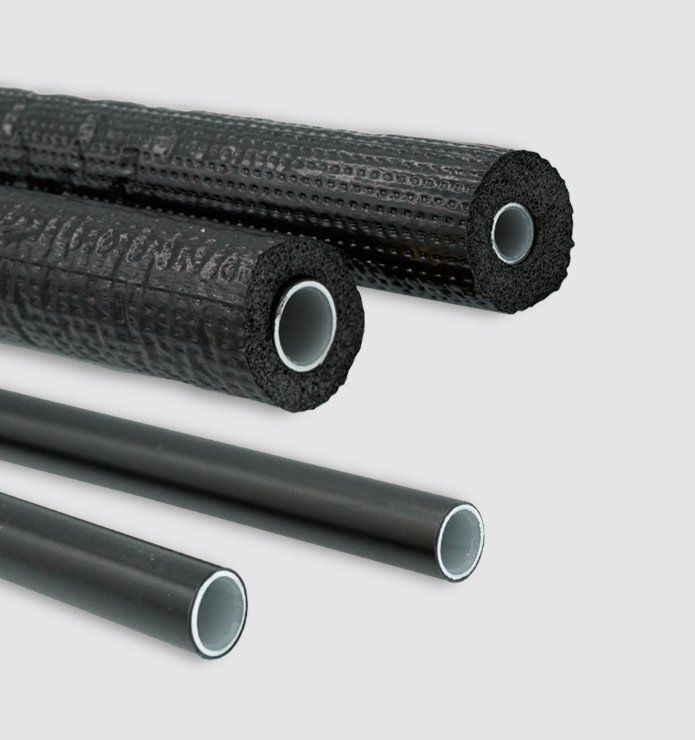

Python™ comes in both insulated and non-insulated for use in HVAC systems for industrial, commercial and residential applications.
-
For HVAC Residential & Commercial Applications
Lightweight: Half the Weight of Copper Pipe
ICC-ES PMG-1675 Listed
Product Tested and Listed to ASTM F3506-21: Standard Specification
Chemical, UV & Kink Resistant
No Need for a Torch on Site
-
Maximum Design Pressure: 1/4" - 3/4" at 700psi, 7/8" at 650psi
Maximum Design Temperature: 203˚F
ID & Flow Rates: Same as Copper Pipe
Approved Refrigerants: R410a, R32, R454b
Available Pipe Sizes: 1/4”, 3/8”, 1/2”, 5/8”, 3/4", 7/8"
Available lengths: 50 feet, 300 feet. Pipe Marked Every Foot
-
Completely Recyclable
Non-Porous, Fiber-Free: Closed-Cell Insulation Resists Mold Growth
Manufactured Without CFCs, HCFCs, HFCs, PBDEs and Formaldehyde
Year-Round Pipe Protection from Freezing and Condensation
Tear Resistant
-
Standard Covers: UV Requirements, Sustained & Burst Pressure Testing, Refrigerant Expo-Sure Testing, Pull Testing, Vibration Testing, Fatigue Testing
Fitting Section of the Standard Covers: Burst Pressure Testing, Sustained Pressure Testing, Thermocycle Testing
Pipe Shall Be Cut with a Tubing Cutter
Pipe Shall Be Reamed and Chamfered with a Python Chamfering Tool
Pipe Fittings Shall Be Installed with a Torque Wrench to the Specified Torque
All Necessary Components For A Quick And Easy Install!
Contents Included: Liquid Line, Suction Line, Female Compression Fitting Assemblies, Python Chamfering Tool
PYTHON CUTTERS
Close Quarter Multi-layer Line Set Cutter - P/N 7100
Standard Multi-layer Line Set Cutter - P/N 7101

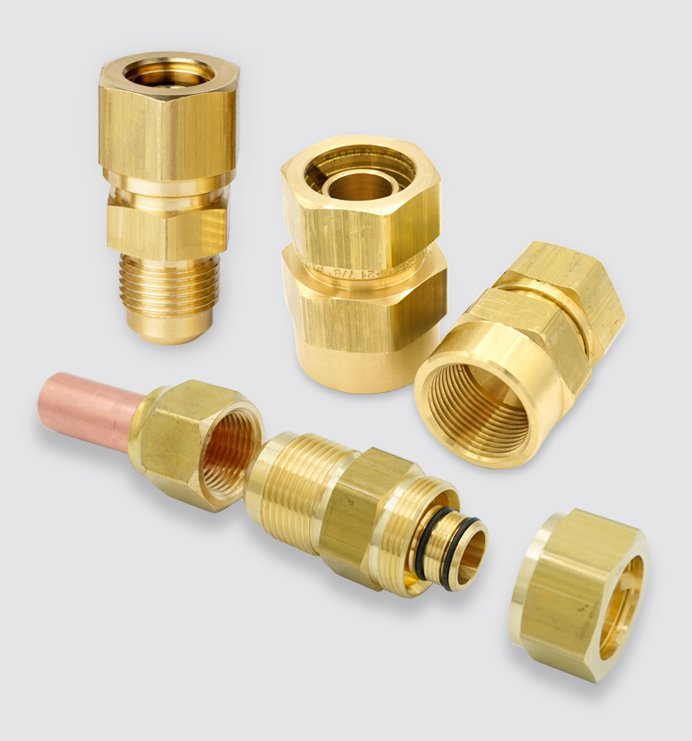

Python compression fitting assemblies are made of solid brass construction and can be applied in the field without the use of special tools.
SPLIT SYSTEM CONNECTIONS Flared threaded male connection to flare nut on brazed copper
MINI-SPLIT CONNECTIONS Flared female threaded connection to king valve
-
6605 3/8″ No Braze Compression Fitting
6610 1/2″ No Braze Compression Fitting
6615 5/8″ No Braze Compression Fitting
6620 3/4″ No Braze Compression Fitting
6625 7/8″ No Braze Compression Fitting
-
6200 1/4″ Coupler Compression Fitting Assembly
6205 3/8″ Coupler Compression Fitting Assembly
6210 1/2″ Coupler Compression Fitting Assembly
6215 5/8″ Coupler Compression Fitting Assembly
6220 3/4″ Coupler Compression Fitting Assembly
6225 7/8″ Coupler Compression Fitting Assembly
-
6000 1/4″ Male Compression Fitting Assembly
6005 3/8″ Male Compression Fitting Assembly
6010 1/2″ Male Compression Fitting Assembly
6015 5/8″ Male Compression Fitting Assembly
6020 3/4″ Male Compression Fitting Assembly
6025 7/8″ Male Compression Fitting Assembly
-
6200 1/4″ Coupler Compression Fitting Assembly
6205 3/8″ Coupler Compression Fitting Assembly
6210 1/2″ Coupler Compression Fitting Assembly
6215 5/8″ Coupler Compression Fitting Assembly
6220 3/4″ Coupler Compression Fitting Assembly
6225 7/8″ Coupler Compression Fitting Assembly
-
6300 1/4″ Copper Stub
6305 3/8″ Copper Stub
6310 1/2″ Copper Stub
6315 5/8″ Copper Stub
6320 3/4″ Copper Stub with Flare Nut
6325 7/8″ Copper Stub with Flare Nut
-
6400 1/4″ Flare Nut
6405 3/8″ Flare Nut
6410 1/2″ Flare Nut
6415 5/8″ Flare Nut
6420 3/4″ Flare Nut
6425 7/8″ Flare Nut
-
6500 1/4″ Male Flare Elbow
6505 3/8″ Male Flare Elbow
6510 1/2″ Male Flare Elbow
6515 5/8″ Male Flare Elbow
6520 3/4″ Male Flare Elbow
6525 7/8″ Male Flare Elbow
Chamfering tools are used for grinding center holes, positioning holes, grinding holes, or deburring and rounding the edges after side-surface machining. Python chamfering tools are 3-sided for use with multiple sizes of tubing, easy to use, and are proudly made in the USA.
P/N 7000 - Python Chamfering Tool 1/4″ x 3/8″ x 1/2″
P/N 7001 - Python Chamfering Tool 5/8″ x 3/4″ x 7/8″
CHAMFERING BITS
Coming Soon

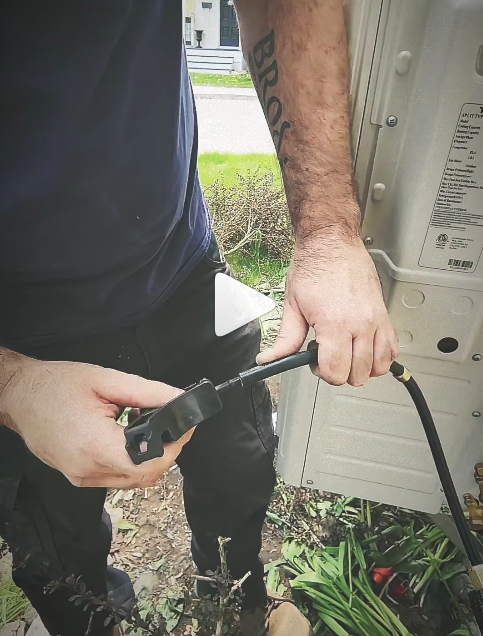

PYTHON IN ACTION
View Python CASE STUDIES showcasing our products being used in the field for multiple applications.
Share Your Python Experience
Interested in seeing your case study featured? Submit your contact information and we will send you a form to complete about your project experience.
